What is a Corner/Room Divider Curtain Track Set?
A Corner/Room Divider Curtain Track Set is a versatile solution designed to create separate spaces within a larger area or to traverse curtains around a corner. These sets often include a combination of straight and curved tracks, along with all the necessary hardware and accessories, allowing for a customized curtain track setup. Whether for residential, commercial, or industrial applications, these sets offer an effective way to manage light, privacy, and space. With a Corner/Room Divider Curtain Track Set, you can easily transform any room into a more functional and stylish environment.
Features of corner curtain tracks

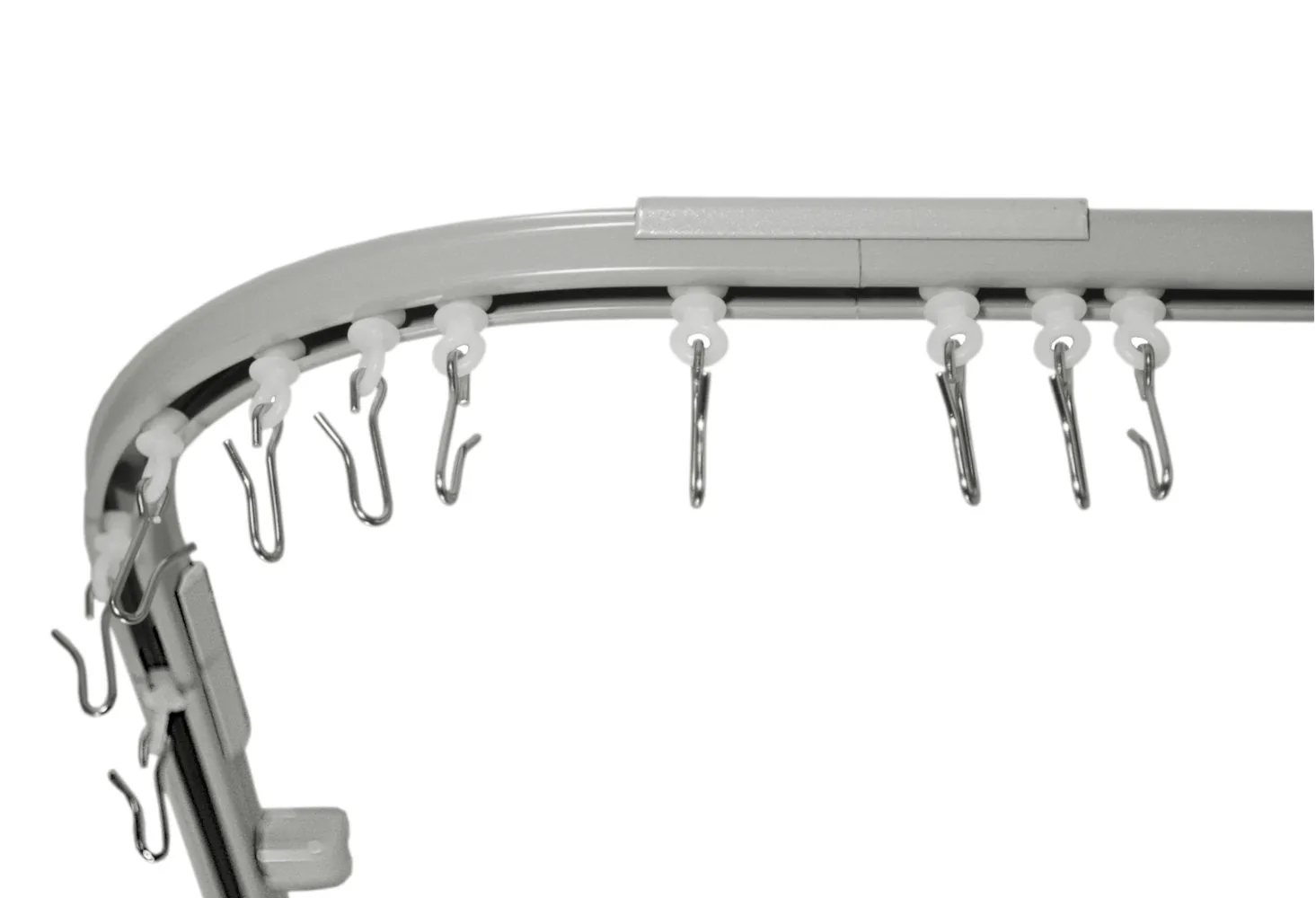

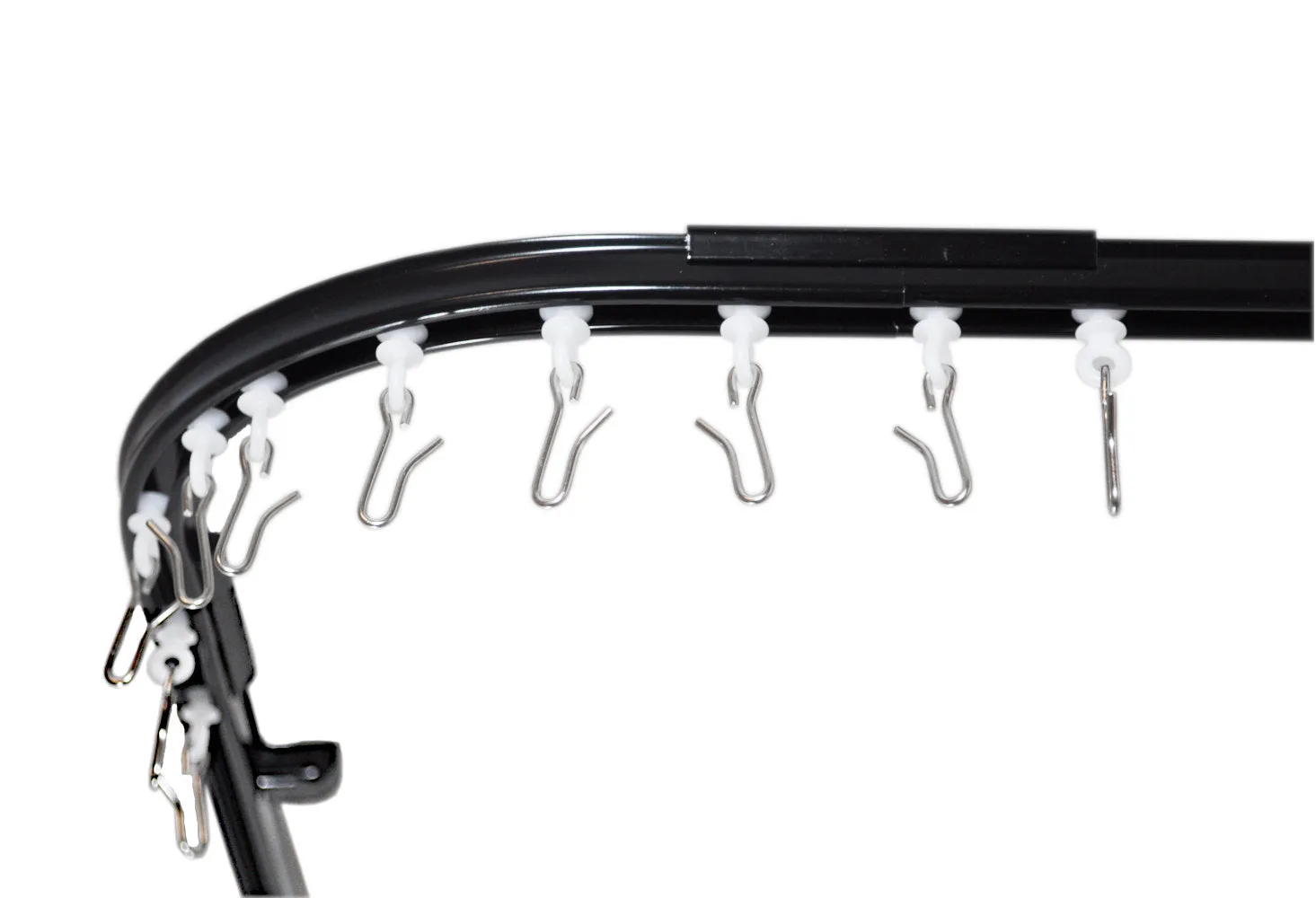

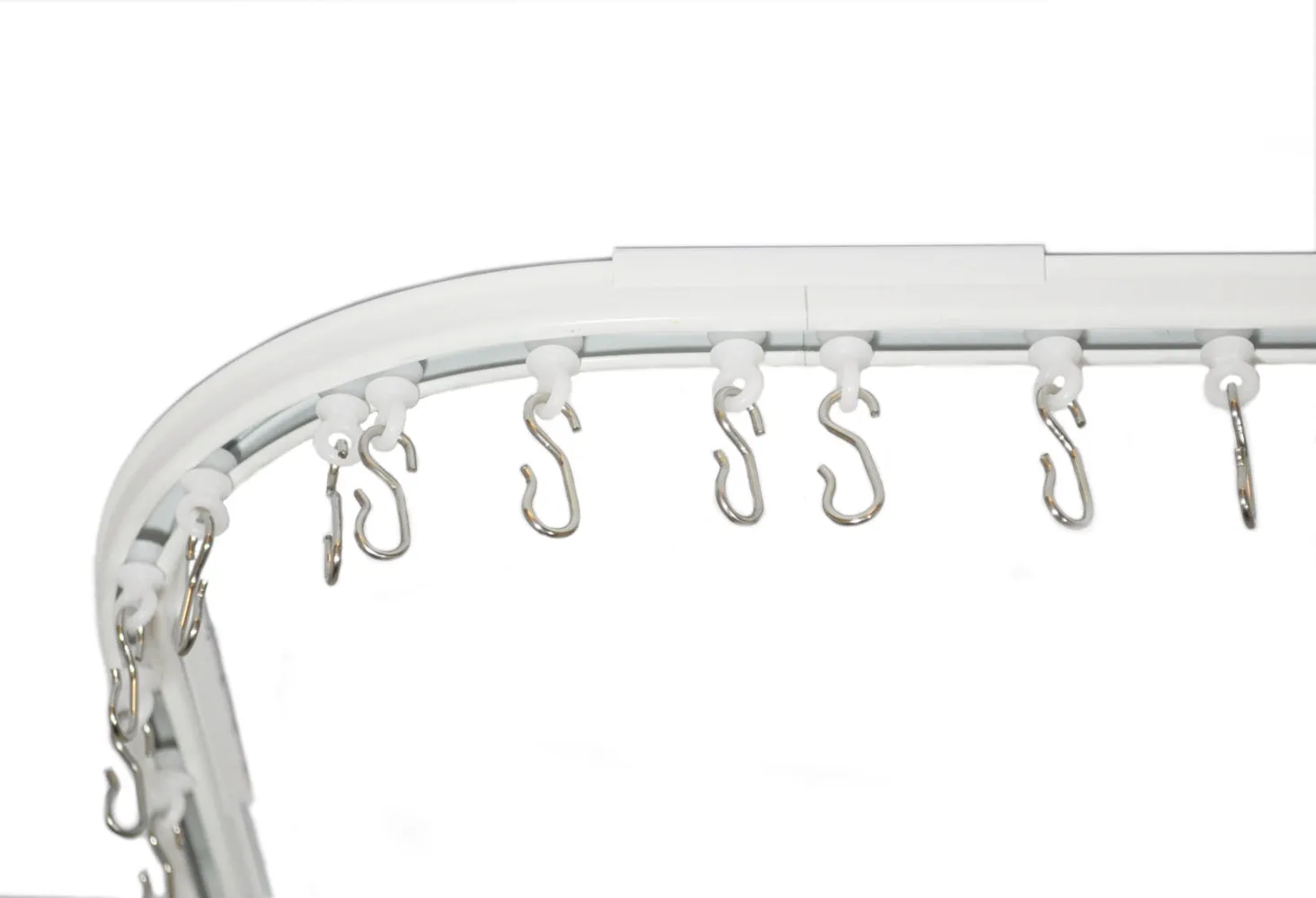

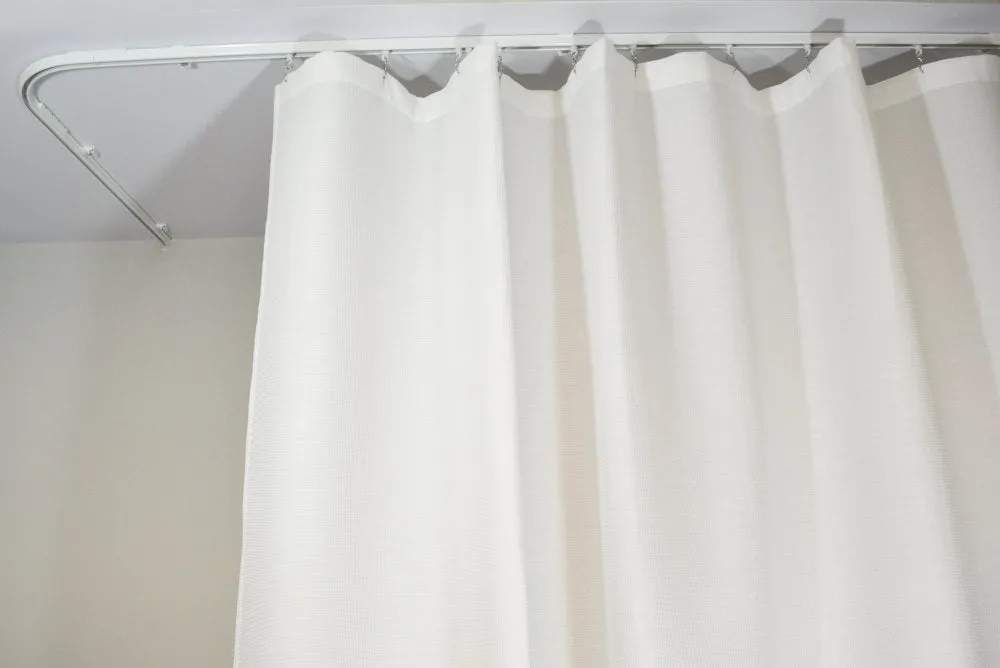

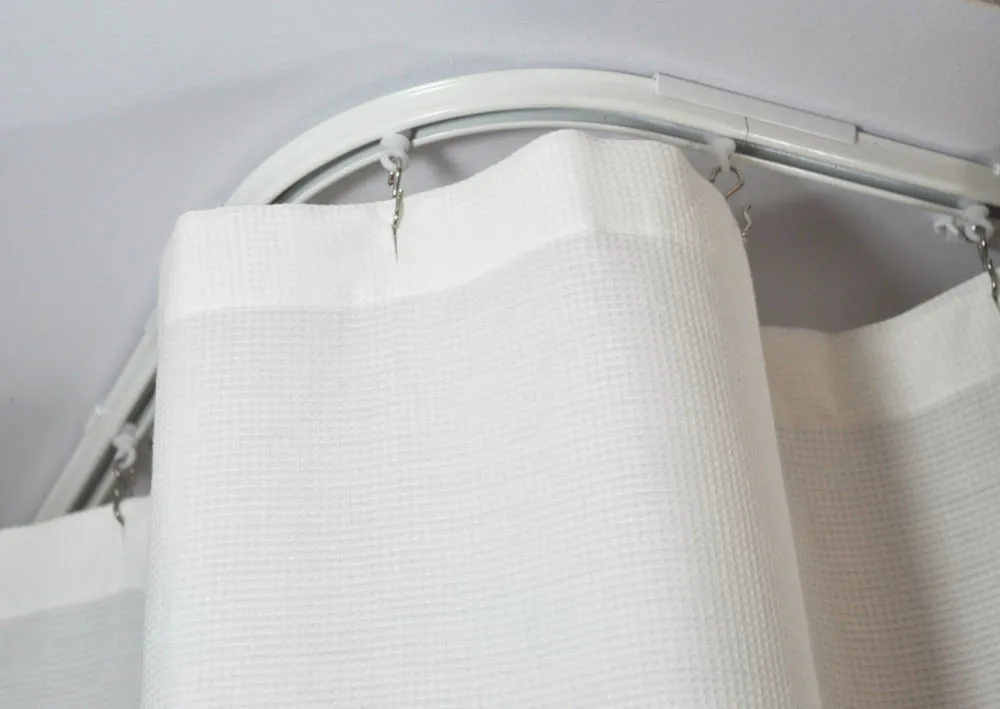

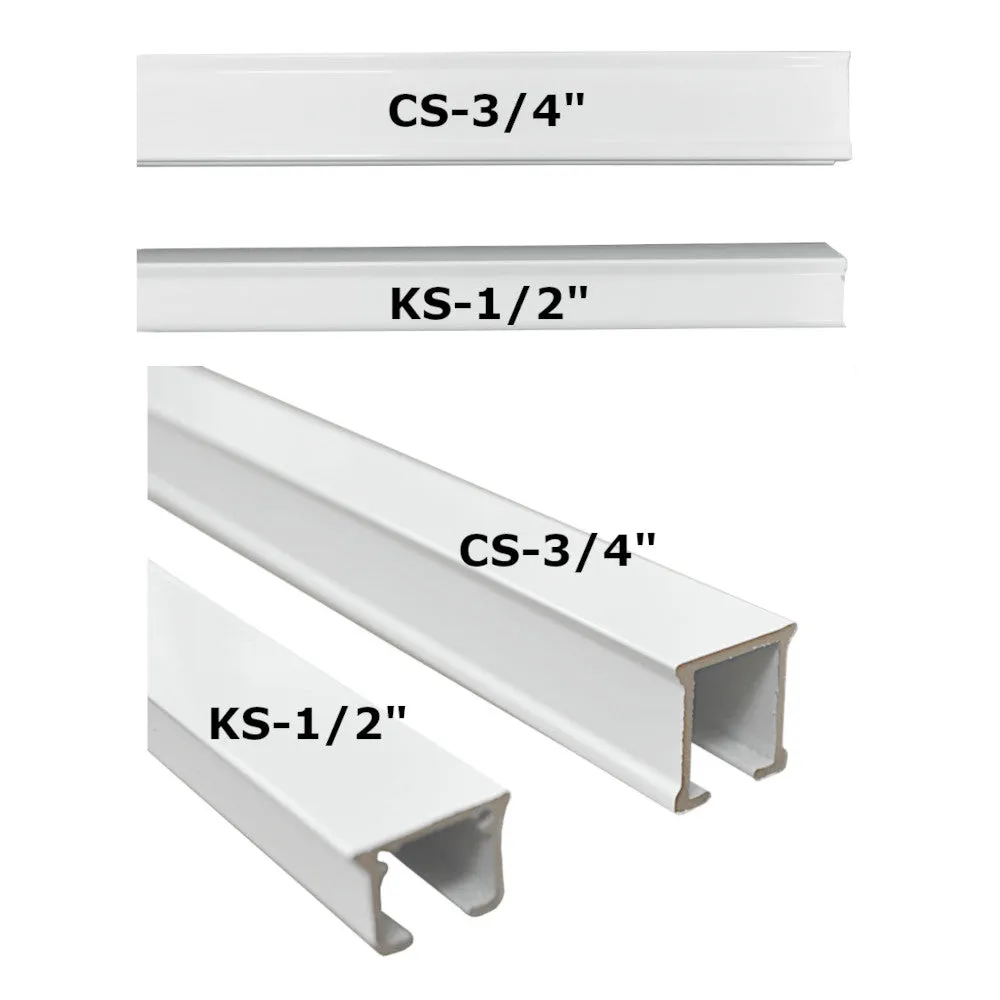

This product page is for our wall or ceiling mount curtain track sets using our KS (1/2”) or CS (3/4”) aluminum curtain track with 90 degree corner bends. These are for corner windows and room divider curtain track situations, including curved tracks. The options include L shapes with one bend and U shapes with 2 bends.
If you select the carriers, please view the links on the to learn more.
All track sets can easily be cut to size with a hack saw. If you want us to cut to a different size, just leave the dimensions in the custom cut box. If you need a set with custom angles, contact us.
The holds a maximum of 3 lbs per foot. The CS is a little heavier duty and holds a maximum of 6 lbs per foot. Both have great splices and patented lubrication. The KS bend radius is 4”. The CS radius is 6”.
How do you measure for a corner track set?
Measure against the wall from the corner out to where you want the track to end on each side. Each track dimension should be reduced by the projection away from the wall. This is typically 3" for a single track. For example, if your left measurement against the wall is 53" and the right is 76", your finished dimensions would be 50" X 73".
For a double track, order two of the same track and let us know in the special instruction box in the cart that it is a double set. The back rod will project 3" and the front rod 6", so your dimensions in the above example would be 50 x 73 and 47 x 70.
When measuring for an internal room divider, provide the exact dimension of the track itself. There would be no projection from the wall to consider.
Keep in mind that an equal size track is not necessary on each side of the bend. For example, the L-96" track set could be cut and spliced to have 14' of straight track on one side of the bend and 2' on the other or any other combination up to 192" total (96" x 2).
What's included:

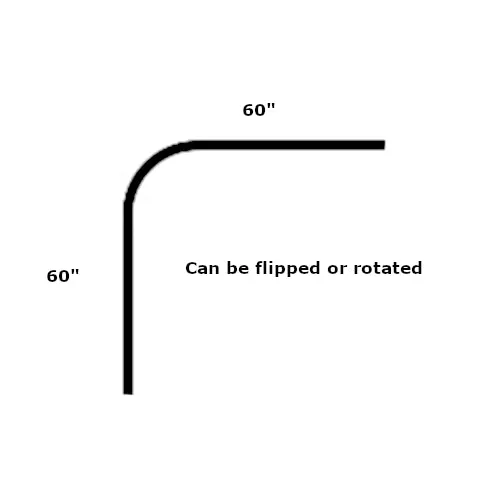

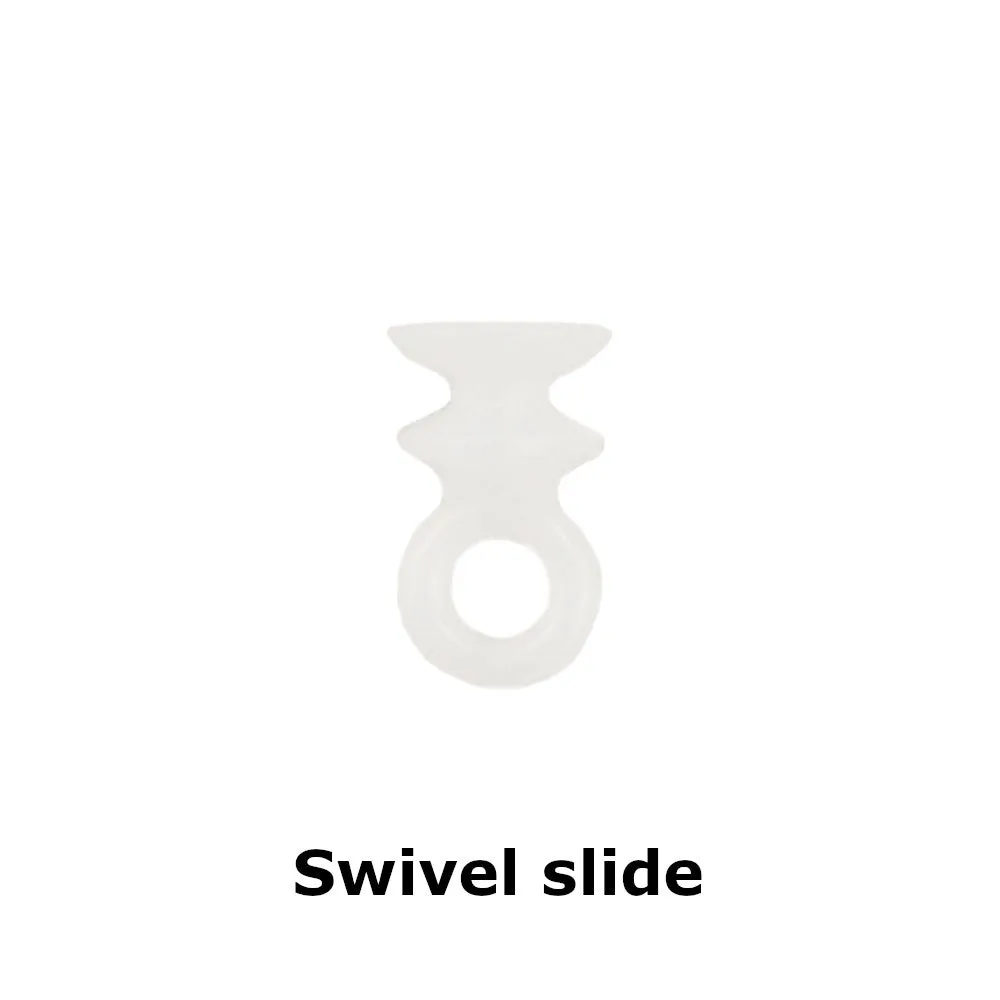

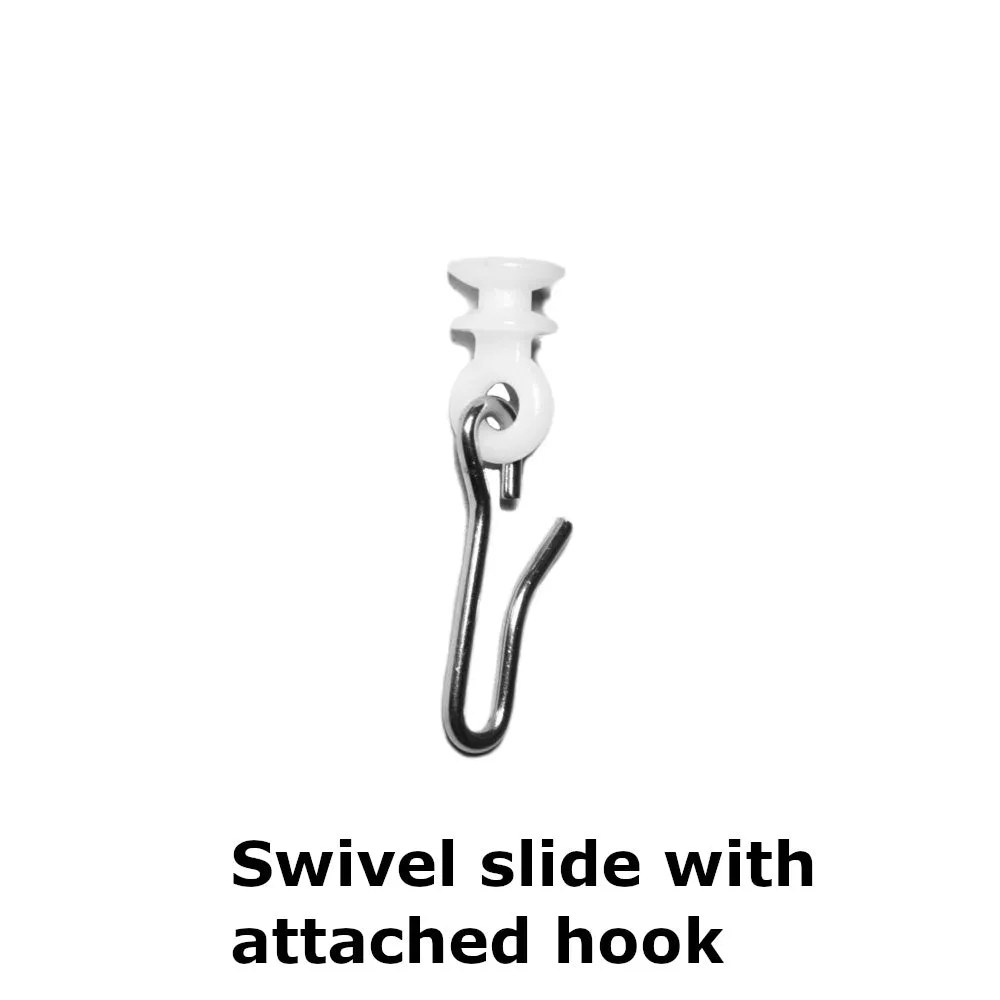

L-60" comes with track, 1) , 2) end caps, 30) slides, 6) wall or ceiling brackets and 2) splices.
L-96" comes with track, 1) 90 degree bend, 2) end caps, 48) slides, 6) wall or ceiling brackets and 2) splices.

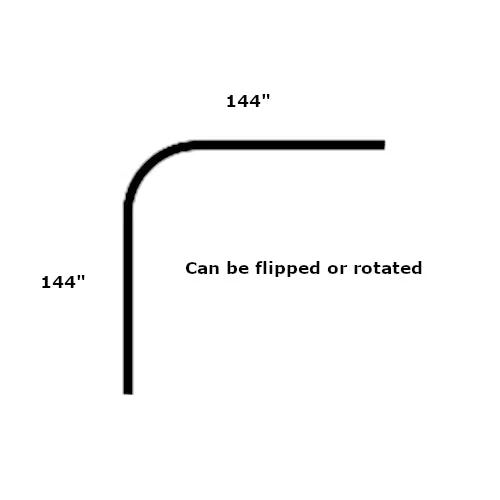

L-144" comes with track, 1) 90 degree bend, 2) end caps, 72) slides, 10) wall or ceiling brackets and 4) splices.

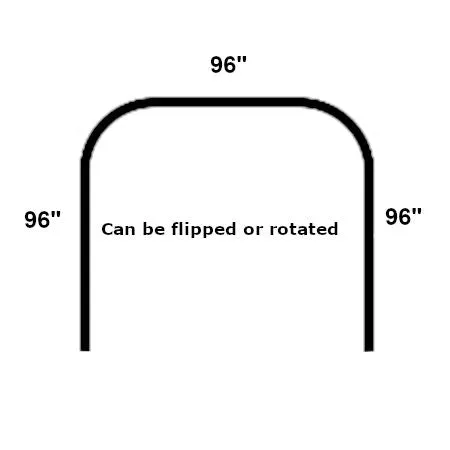

U-96" comes with track,, 2) 90 degree bends, 2) end caps, 72) slides, 10) wall or ceiling brackets and 4) splices.

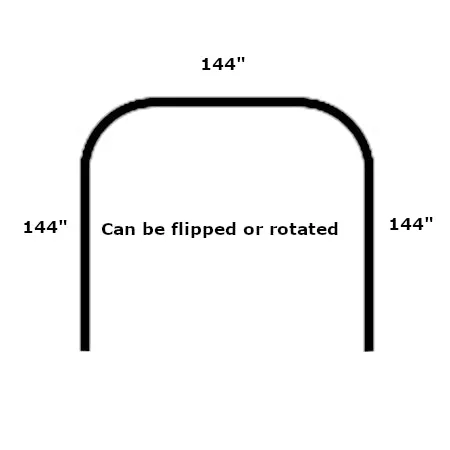

U-144" comes with track, 2) 90 degree bends, 2) end caps, 96) slides, 15) wall or ceiling brackets and 7) splices.
are available to purchase separately.
